Components > Motherboards

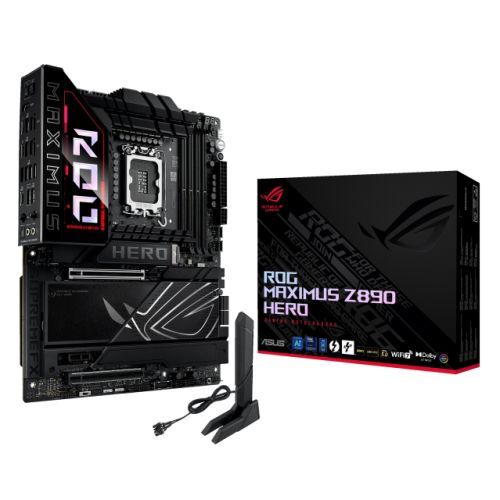

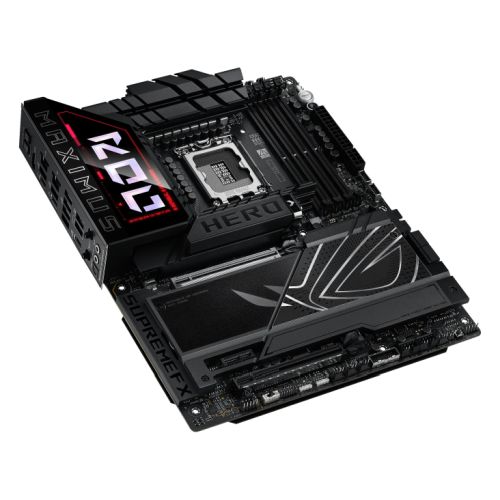

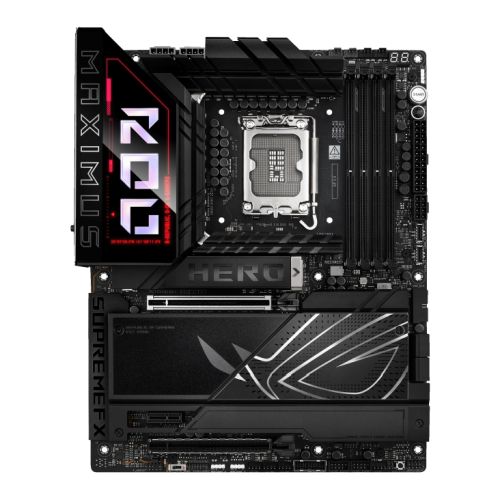

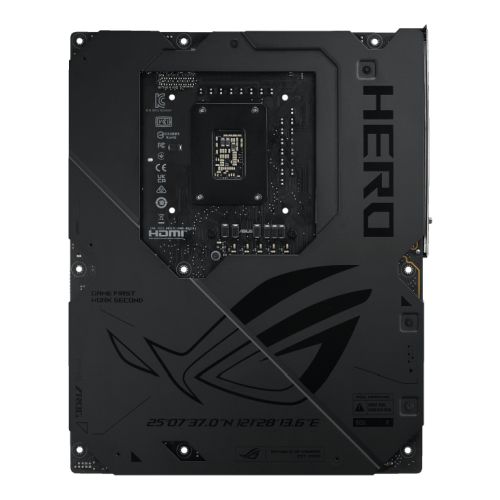

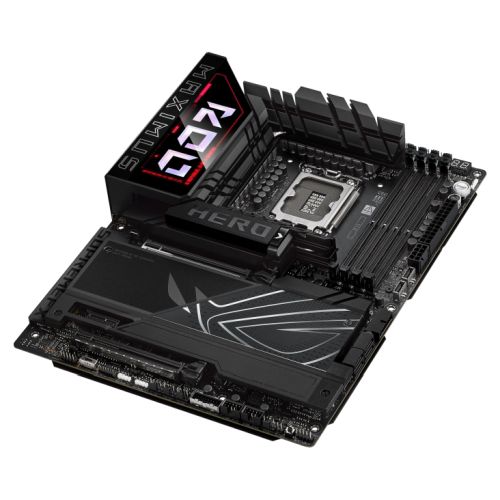

Asus ROG MAXIMUS Z890 HERO, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB4, Wi-Fi 7, 5G & 2.5G LAN, PD 60W, RGB, 6x M.2

+ click images to enlarge

Stock Code

AUMBZ890MAXHERO

Manufacturer

ASUS

Manufacturer Code

90MB1ID0-M0EAY0

EAN Number

4711387747223

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1851

Chipset

Intel Z890

CPU Support

Support Intel Core Ultra Processors (Series 2)
Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
DIMM Fit
Supports Intel XMP
Supports DIMM Flex
ASUS Enhanced Memory Profile III
NitroPath DRAM Technology

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots

4 x DIMM

RAM Speeds

Up to 8800+MT/s (OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x Thunderbolt 4 support DisplayPort and Thunderbolt video outputs

PCI/PCI Express

Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)*

Intel Z890 Chipset:
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot

*When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.

Storage

4 x SATA III
6 x M.2
SlimSAS slot*

Intel Core Ultra CPUs (Series 2):
M.2_1 (2242/2260/2280/22110) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2242/2260/2280) - PCIe 5.0 x4
M.2_4 (2242/2260/2280) PCIe 5.0 x4

Intel Z890 Chipset:
M.2_5 (2242/2260/2280) - PCIe 4.0 x4
M.2_6 (2242/2260/2280) - PCIe 4.0 x4

*SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5

Wireless

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4

LAN

5GB LAN & 2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

USB Ports Supported

Rear:
2 x Thunderbolt 4 (USB Type-C)
1 x USB 10Gbps Type-C
4 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A

Front:
1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
1 x USB 10Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

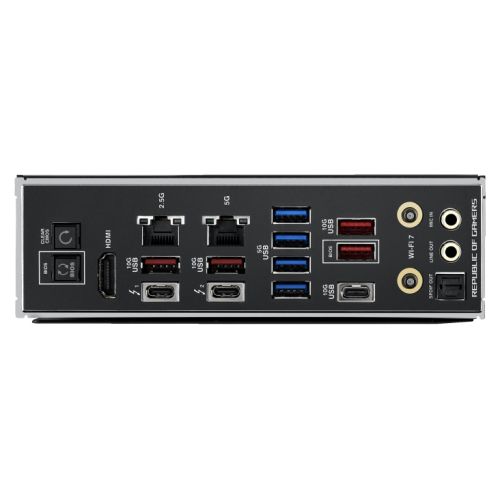

Back Panel I/O Ports

2 x Thunderbolt 4 (USB Type-C)
1 x USB 10Gbps Type-C
4 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
1 x HDMI
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
2 x 8-pin +12V CPU
1 x 8-pin PCIe
6 x M.2 (Key M)
4 x SATA 6Gb/s
1 x SlimSAS

1 x USB 20Gbps Type-C
1 x USB 10Gps Type-C
2 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio
1 x ReTry button
1 x Start button

1 x 10-1 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt (USB4)

Accessories

1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages

1 x ROG thank you card
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

4.3000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
