Components > Motherboards

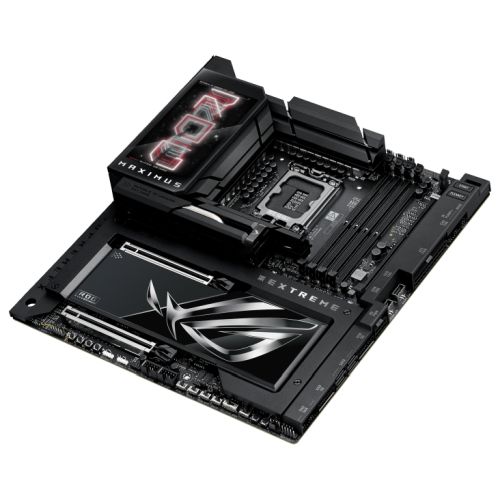

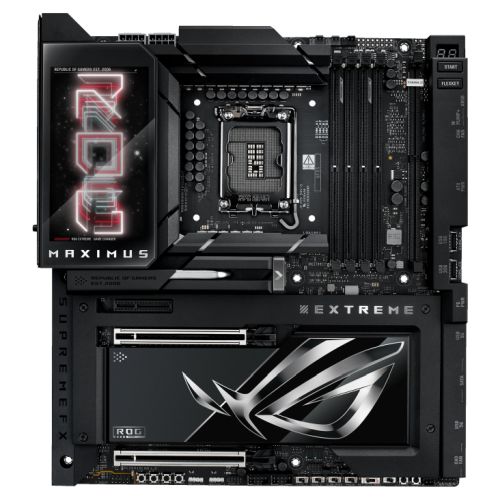

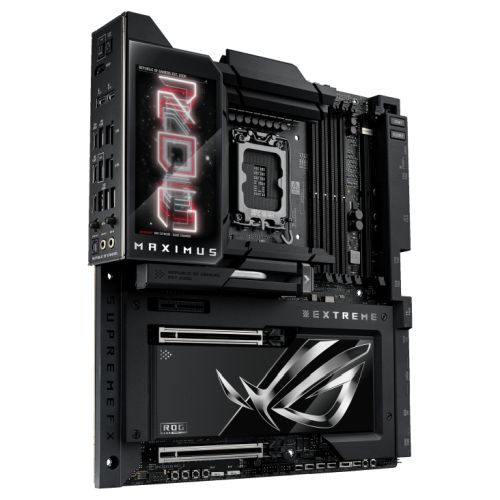

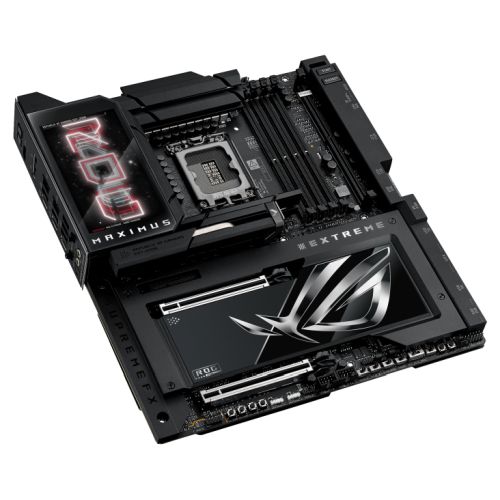

Asus ROG MAXIMUS Z890 EXTREME, Intel Z890, 1851, EATX, 4 DDR5, HDMI, 2 TB5, Wi-Fi 7, 10G & 2.5G LAN, ROG Q-DIMM.2 Card, LCD Screen, 6x M.2
+ click images to enlarge
Stock Code
AUMBZ890MAXEXTREME
Manufacturer
Manufacturer Code
90MB1IA0-M0EAY0
EAN Number
4711387754153
4 Available
You must be logged in to view pricing and place orders
Motherboard Type
Desktop
Form Factor
Extended ATX
Socket
Intel 1851
Chipset
Intel Z890
CPU Support
Support Intel Core Ultra Processors (Series 2)
Click here for CPU support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Supports Intel XMP
ASUS Enhanced Memory Profile III
DIMM Fit
Supports DIMM Flex
NitroPath DRAM Technology
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Supports Intel XMP
ASUS Enhanced Memory Profile III
DIMM Fit
Supports DIMM Flex
NitroPath DRAM Technology
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
RAM Slots
4 x DIMM
RAM Speeds
Up to 8800+MT/s (OC)
Maximum Memory
256GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
2 x Thunderbolt 5 support DisplayPort and Thunderbolt video outputs
2 x Thunderbolt 5 support DisplayPort and Thunderbolt video outputs
PCI/PCI Express
Intel Core Ultra CPUs (Series 2):
2 x PCIe 5.0 x16 (supports x16 or x8/x8 or x8/x4/x4 modes)*
Intel Z890 Chipset*:
1 x PCIe 4.0x4 slot
*M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
2 x PCIe 5.0 x16 (supports x16 or x8/x8 or x8/x4/x4 modes)*
Intel Z890 Chipset*:
1 x PCIe 4.0x4 slot
*M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Storage
4 x SATA III
6 x M.2
Intel Core Ultra CPUs (Series 2):
M.2_1 (2242/2260/2280/22110) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2242/2260/2280/22110) - PCIe 5.0 x4
M.2_4 (2242/2260/2280) PCIe 5.0 x4
Intel Z890 Chipset (via ROG Q-DIMM.2):
DIMM.2_1 (2230/2242/2260/2280/22110) - PCIe 4.0 x4
DIMM.2_2 (2230/2242/2260/2280/22110) - PCIe 4.0 x4
6 x M.2
Intel Core Ultra CPUs (Series 2):
M.2_1 (2242/2260/2280/22110) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2242/2260/2280/22110) - PCIe 5.0 x4
M.2_4 (2242/2260/2280) PCIe 5.0 x4
Intel Z890 Chipset (via ROG Q-DIMM.2):
DIMM.2_1 (2230/2242/2260/2280/22110) - PCIe 4.0 x4
DIMM.2_2 (2230/2242/2260/2280/22110) - PCIe 4.0 x4
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4
LAN
10GB LAN & 2.5GB LAN
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
USB Ports Supported
Rear:
2 x Thunderbolt 5 (USB Type-C)
1 x USB 20Gbps Type-C
2 x USB 10Gbps Type-C
5 x USB 10Gbps Type-A
Front:
1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
1 x USB 10Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0
2 x Thunderbolt 5 (USB Type-C)
1 x USB 20Gbps Type-C
2 x USB 10Gbps Type-C
5 x USB 10Gbps Type-A
Front:
1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
1 x USB 10Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

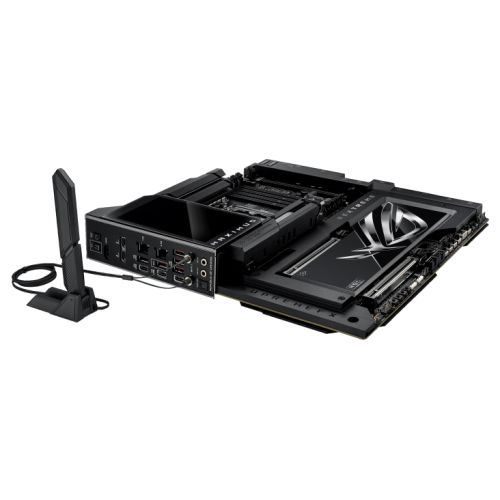

Back Panel I/O Ports
2 x Thunderbolt 5 (USB Type-C)
1 x USB 20Gbps Type-C
2 x USB 10Gbps Type-C
5 x USB 10Gbps Type-A
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
1 x Marvell AQtion 10Gb Ethernet
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button
1 x USB 20Gbps Type-C
2 x USB 10Gbps Type-C
5 x USB 10Gbps Type-A
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
1 x Marvell AQtion 10Gb Ethernet
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
2 x 4-pin Radiator Fan
2 x W_PUMP+
1 x WB_SENSOR
1 x 24-pin Main
2 x 8-pin +12V CPU
1 x 8-pin PCIe
4 x M.2 (Key M)
1 x DIMM.2 slot supports 2 x M.2
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
2 x 4-pin Radiator Fan
2 x W_PUMP+
1 x WB_SENSOR
1 x 24-pin Main
2 x 8-pin +12V CPU
1 x 8-pin PCIe
4 x M.2 (Key M)
1 x DIMM.2 slot supports 2 x M.2
4 x SATA 6Gb/s
1 x USB 20Gbps Type-C
1 x USB 10Gbps Type-C
2 x USB 5Gbps
2 x USB 2.0
1 x 6-pin ARGB Gen2 (supports 2 x ARGB Gen2 headers)
2 x Addressable Gen2
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x USB 20Gbps Type-C
1 x USB 10Gbps Type-C
2 x USB 5Gbps
2 x USB 2.0
1 x 6-pin ARGB Gen2 (supports 2 x ARGB Gen2 headers)
2 x Addressable Gen2
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel
1 x Thermal Sensor
1 x Front Panel Audio
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel
1 x Thermal Sensor
Accessories
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
1 x ROG DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
1 x ROG DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
2 x M.2 Q-Slide packages
6 x M.2 backplate rubber packages
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
2 x M.2 Q-Slide packages
6 x M.2 backplate rubber packages
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide
Additional Features
See Overview
Package Type
Retail
Package Weight
3.3470 kg
Warranty
3 Years
Full Box Quantity
4
