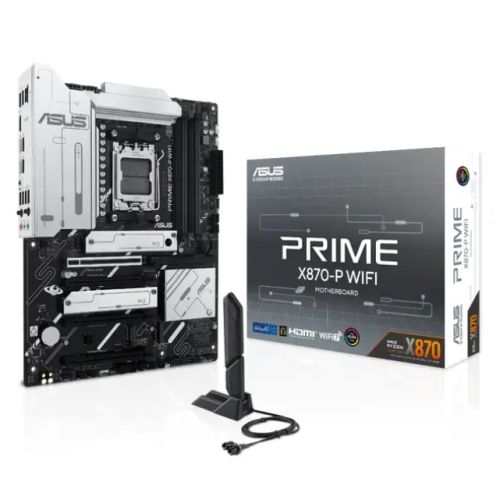

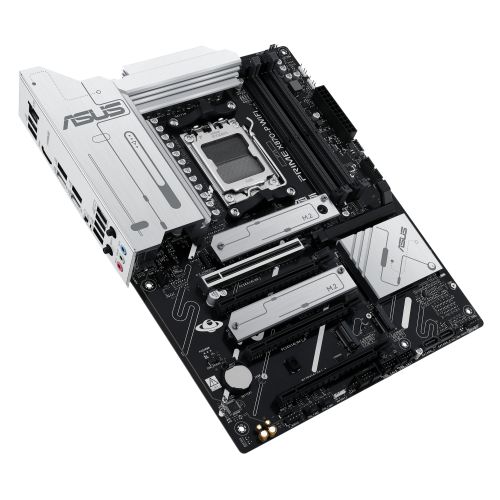

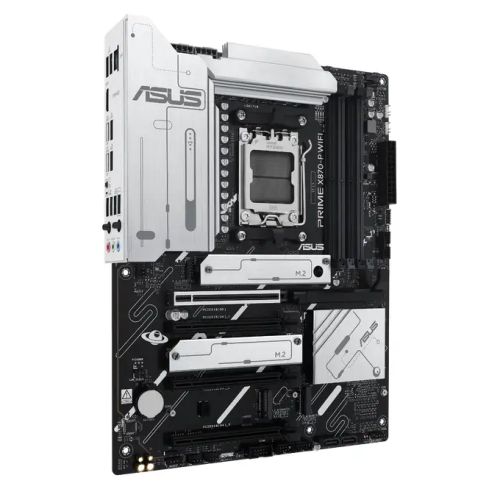

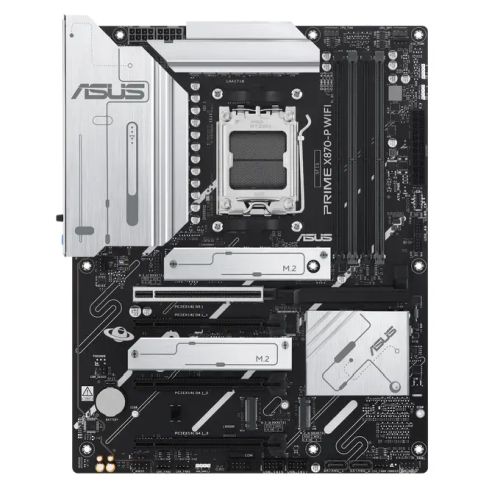

Asus PRIME X870-P WIFI, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, 4x M.2

+ click images to enlarge

Stock Code

AUMBX870PPRWI

Manufacturer

ASUS

Manufacturer Code

90MB1IS0-M0EAY0

EAN Number

4711387718148

Printable Version

30 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD X870

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
ASUS Enhanced Memory Profile

RAM Slots

4 x DIMM

RAM Speeds

Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs

PCI/PCI Express

Ryzen 9000 & 7000 CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)

Ryzen 8000 CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)

AMD X870 Chipset:
3 x PCIe 4.0 x16 (supports x1 mode)

Storage

2 x SATA III
4 x M.2

Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4

Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4

X870E Chipset:
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2280 ) - PCIe 4.0 x4
M.2_4 (2280 ) - PCIe 3.0 x2

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU

Wireless

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

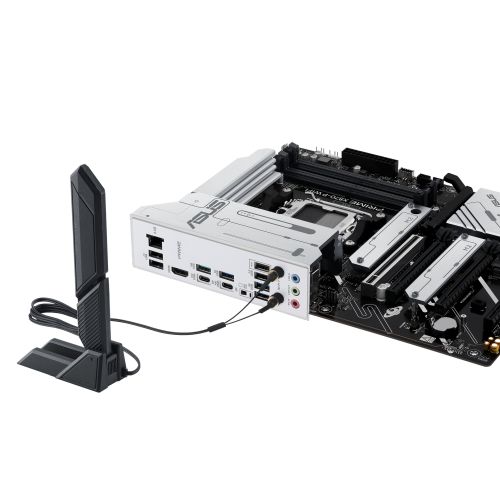

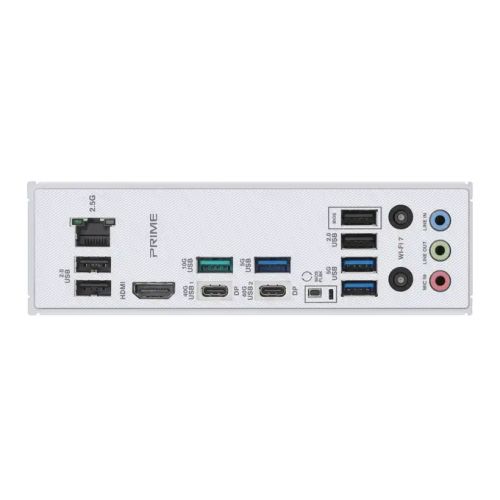

Back Panel I/O Ports

2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
4 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 10Gbps USB Type-C
1 x USB 5Gbps
2 x USB 2.0

3 x Addressable Gen 2
1 x Clear CMOS
1 x COM Port header
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

2.2500 kg

Warranty

3 Years
