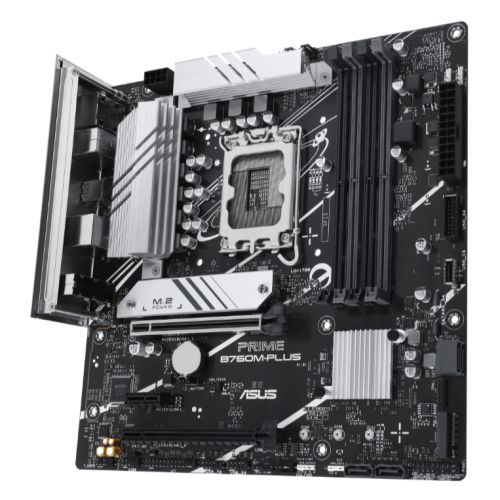

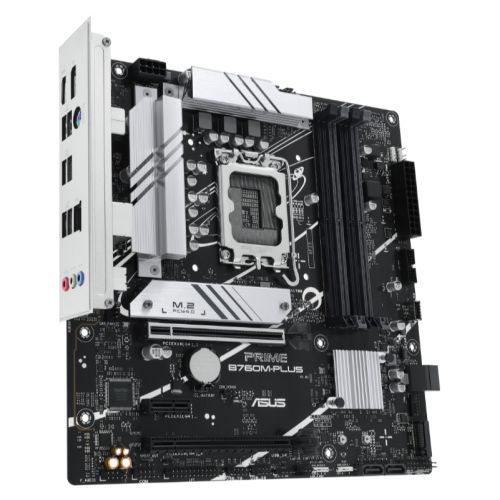

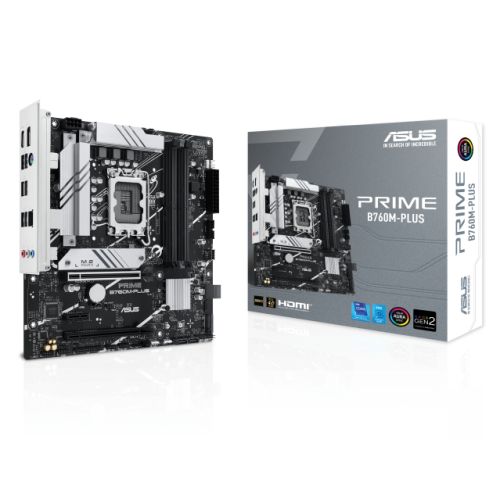

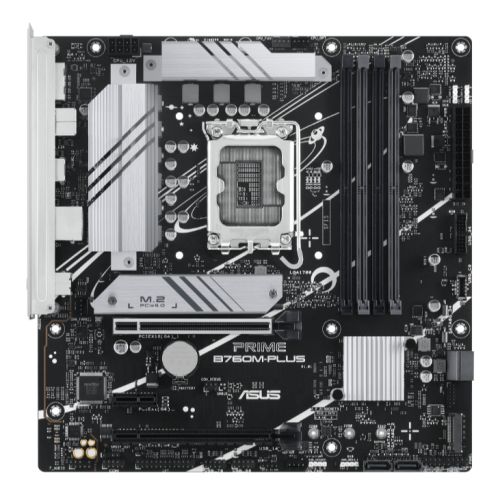

Asus PRIME B760M-PLUS, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

+ click images to enlarge

Stock Code

AUMBB760MPLPR

Manufacturer

ASUS

Manufacturer Code

90MB1GY0-M0EAY0

EAN Number

4711387469910

Printable Version

1 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM Slots

4 x DIMM

RAM Speeds

Up to 7200+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 10Gbps Type-A
4 x USB 2.0 Type-A

Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps
5 x USB 2.0

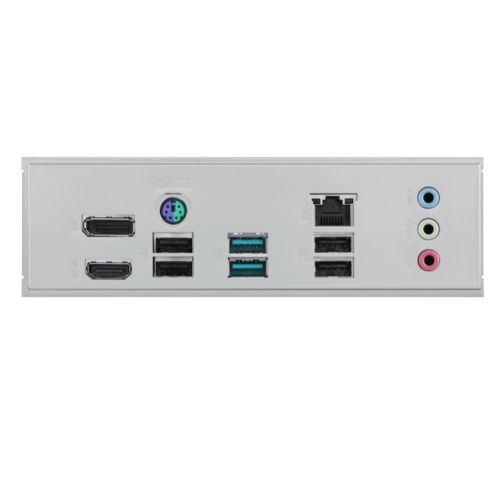

Back Panel I/O Ports

2 x USB 10Gbps Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps Type-C
1 x USB 5Gbps
3 x USB 2.0
3 x Addressable Gen2

1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front panel audio
1 x LPT
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

0.7220 kg

Warranty

3 Years
