Components > Motherboards

Asus PRIME B650M-K, AMD B650, AM5, Micro ATX, 2 DDR5, VGA, HDMI, 2.5G LAN, PCIe4, 2x M.2

+ click images to enlarge

Stock Code

AUMBB650MKPR

Manufacturer

ASUS

Manufacturer Code

90MB1F60-M0EAY0

EAN Number

4711387236628

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD B650

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

RAM Slots

2 x DIMM

RAM Speeds

Up to 8000+(OC)

Maximum Memory

96GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode max)
2 x PCIe 4.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 5.0 x4*
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

*Ryzen 8000 Series CPUs support PCIe 4.0 x4 mode

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

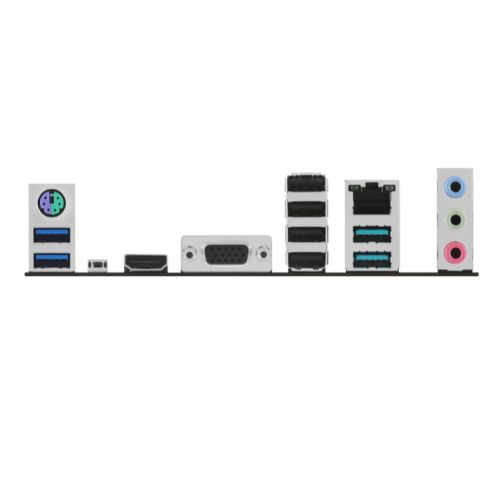

Back Panel I/O Ports

2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x VGA
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
2 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS

1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw Package for M.2 SSD
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.2000 kg

Warranty

3 Years

Full Box Quantity
