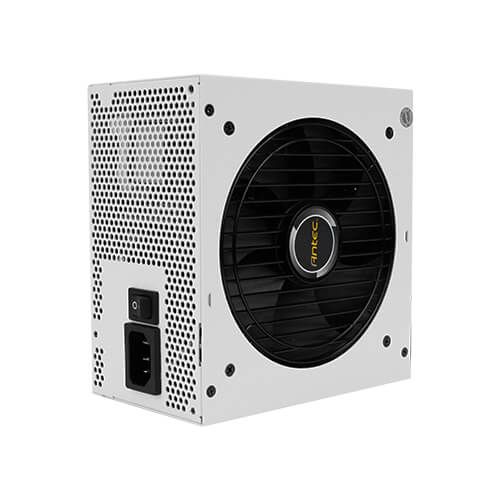

Antec 750W EA750G PRO WHITE EarthWatts Gold Pro PSU, Semi-Modular, 80+ Gold, Continuous Power

Stock Code
PSU-750ANTEAGPRO-WH
Manufacturer Link
ANTEC
Manufacturer Code
0-761345-11627-5
EAN Number
0761345116275

Description


The EARTHWATTS GOLD PRO WHITE series features high performance with an 80 PLUS® GOLD rating, delivering up to 92% efficiency and reducing your electricity bill.

Featuring hybrid modular cabling, a whisper-quiet 120mm fan controlled by Antec’s renowned Thermal Manager, and CircuitShield Industrial Grade protection-all backed by our seven-year Antec Quality warranty, the EARTHWATTS GOLD PRO WHITE series is the power supply builders choose for a stable, quiet, and efficient system.


  • 750W Continuous Power - Guaranteed 750W of Continuous Power from Antec
  • 80 PLUS® GOLD certified - Up to 92% efficient, to reduce your electricity bill
  • AQ7 - Antec Quality 7-year warranty
  • 120 mm Silence - Whisper-quiet high-quality fan with long lifetime
  • 4x PCI-E connectors for multiple GPU support
  • Semi-modular cable management - Improves airflow and reduces clutter
  • 99% +12V - Output for maximum CPU & GPU support
  • PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
  • Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
  • CircuitShield™ - Full suite of industrial grade protections:
  • Over Current Protection (OCP),
  • Over Voltage Protection (OVP),
  • Under Voltage Protection (UVP),
  • Short Circuit Protection (SCP),
  • Over Power Protection (OPP),
  • No Load Operation (NLO),
  • Brown-Out Protection (BOP),
  • Over Temperature Protection (OTP)
  • Surge & Inrush Protecion (SIP)
  • Heavy-duty Caps - High-performance capacitors ensure tightest DC stability and regulation
  • ErP Lot 6: 2013 - Compliant to the toughest energy standard available






80 PLUS Japanese capacitors

80 PLUS Japanese capacitors provide high efficiency DC to DC stability, and every power supply from our EARTHWATTS GOLD PRO WHITE series is tested for reliability and guaranteed to deliver up to 92% energy efficiency.






99% +12V Output

Engineered with high-quality capacitors and low-noise transformers, the EARTHWATTS GOLD PRO WHITE series provides clean, stable power with maximum CPU and GPU compatibility.

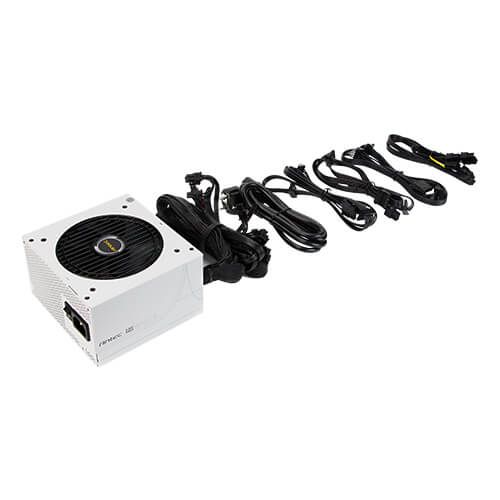

Advanced Hybrid Cable Management

EARTHWATTS GOLD PRO WHITE Series provide black, flat, modular cables to optimize cable management space, resulting in better airflow and reducing clutter.






120mm Silence Whisper-Quiet

High-Quality Fan With Long Lifetime.



Full Specification

Product Description
Antec 750W EA750G PRO WHITE EarthWatts Gold Pro PSU, Semi-Modular, 80+ Gold, Continuous Power

Form Factor
ATX
Series
Antec EarthWatts Gold Pro
Modular
Semi Modular
Compatability
ATX 12V 2.4
Wattage
750 W
Connectors
4 x 6+2 PCI-E SATA
8 x SATA
3 x Molex
2 x 4+4 Pin ATX/EPS
1 x 24 pin
AC Input
100-240 VAC
PFC
Active PFC (>0.9 typical)
Fan Type
Whisper-quiet, high-quality 120mm fan
Fluid-dynamic
Fan Bearing
Fluid / Hydraulic Bearing
80+ Certification
80+ Gold
Efficiency
92% Typically
Protection
CircuitShield - Full suite of industrial grade protections
Features
See Overview
Weight/Dimensions
2.24 Kg
140 x 150 x 86 mm
Package Weight
2.7000 kg
Warranty
7 years
