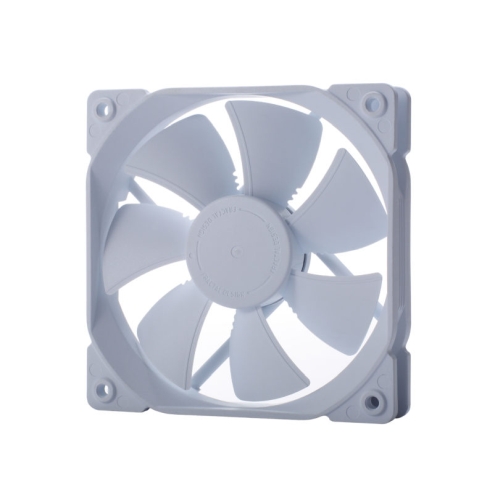

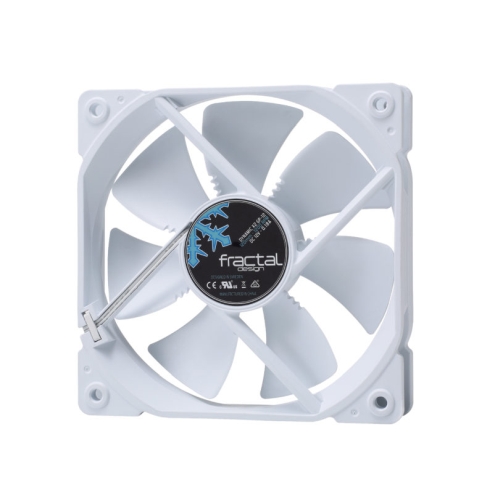

Fractal Design Dynamic X2 GP-12 12cm Case Fan, Long Life Sleeve Bearing, Counter-balanced Magnet, 1200 RPM, White

Stock Code
CF120-FRDYX2GP12-W
Manufacturer Link
FRACTAL
Manufacturer Code
FD-FAN-DYN-X2-GP12-WTO
EAN Number
7340172700142

Description


A true all-purpose fan, offering excellent airflow and outstanding 100,000-hour life expectancy thanks to its LLS (Long Life Sleeve) bearing


  • High grade LLS bearing with class leading 100,000 hours MTBF.
  • Equipped with a counter-pull magnet that reduces the axial tension on the bearing
  • Fan geometry optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
  • Aerodynamically shaped stator struts including the wire strut. Helps reduce noise and unwanted turbulence.
  • Stator struts sit on a wide angle to the trailing edge of the blades which result in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades further reducing the humming noise produced when the blades pass the stator struts
  • A "trip wire" on the rear side of the blades near the leading edge. The trip wire introduces a larger turbulent boundary layer at an earlier stage, this delays the layer separation and improves both airflow and noise characteristics.
  • The customized design of the Dynamic Series fans contributes to a beautiful, cool build



Designed alongside our high-end Venturi Series, the Dynamic X2 incorporates aerodynamic elements of airplane wing designs for significant noise reduction.

Available in multiple color combinations including black, white, or the classic Fractal Design color scheme with white blades and black frame, the Dynamic X2 series are the perfect choice for anyone seeking an expertly balanced fan with exceptional dependability.






Aerodynamically inspired

  • Aerodynamic stator with embedded wiring helps reduce noise and unwanted turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
  • Trip wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quiet fan environment





Focus on longevity

  • High-grade LLS bearing with 100,000-hour MTBF delivers long-lasting dependability
  • Counter-balanced magnet reduces axial tension on the bearing, resulting in less wear over time





Full Specification

Product Description
Fractal Design Dynamic X2 GP-12 12cm Case Fan, Long Life Sleeve Bearing, Counter-balanced Magnet, 1200 RPM, White

Type
12cm Case Fan
AMD/Intel
N/A
Fan Connector(s)
3-pin
Installation
Screws
Colour
White
LED Lighting
-
Weight
119 g
Fan Dimensions
120 x 120 x 25 mm
Fan Controller
No
Rotation Speed
1200 RPM
Fan Bearing
Long Life Sleeve
Air Flow
52.3 CFM
Noise level
19.4 dB (A)
Power
Input power: 1.32 W
Max input current: 0.18 A
Input voltage: 12 V
Starting voltage: 4 V
Additional Features
See Overview
MTBF
100,000 hours
Package Contents
Dynamic X2 Series fan
Screw pack with 4 metal fan screws
Package Type
Retail
Package Weight
0.1710 kg
Warranty
2 Years
