Be Quiet! Silent Base 600 Gaming Case with Window, ATX, No PSU, Tool-less, 2 x Pure Wings 2 Fans, Orange Trim
Stock Code
CAA-BQSB600-ORA-W
Manufacturer Link
BEQUIET
Manufacturer Code
BGW05
EAN Number
4260052184455
Description
Be Quiet! Silent Base 600 Window Gaming Case (Orange Trim)
- Outstanding performance thanks to an innovative construction that assures excellent cooling efficiency and a perfect air-circulation at well-known whisper-quiet operation
- Excellent usability with simplest mounting and tool-free fitting of drives, an intelligent and adaptable cable solution, and air intake filters that are easily accessed for cleaning
- Ample space and cutouts are provided for high-end components of today and tomorrow, including space for water cooling radiators
- Two pre-installed Pure Wings 2 fans feature nine airflow-optimized fan blades and are decoupled from the case to circulate air with a minimum of vibration and the quietest possible operation

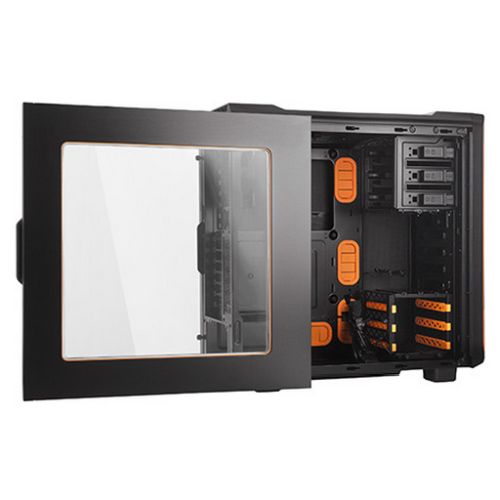

- Side panel with double-glazed window provides a perfect view inside the PC system; the window is made from scratch and impact resisting material and offers a superb soundproofing
- Professional cable management is supported with generous space for organizing cables, silicone rubber grommets, and carefully placed pass-throughs
- Form follows function principle maximizes performance; the look of the case is based upon its intended function and purpose
- Product conception, design and quality control in Germany
Polycarbonate Double-glazed Window
be quiet! is justifiably famous for making some of the most technologically advanced, and absolutely the quietest, PC equipment available. True to the motto “form follows function” the PC case Silent Base 600 Window Orange offers the perfect symbiosis of noise prevention and cooling performance, a good usability and an extensive capacity for high-end hardware.
With a targeted combination of unique airflow control and sound insulation features, Silent Base 600 is a truly superior case ideal for high-end gaming gear and for quiet systems.
Applications
• High resolution gaming and multimedia systems
• Overclocked systems
• Any PC that requires superior quietness, such as audio editing, studio work — or simply a gaming and multimedia system in your living room
Very Silent Operation
• The innovative construction of the front, side and top covers optimize case airflow for perfect air circulation, reducing turbulence and generating superior cooling at lower fan speeds for exceedingly quiet operation
• Sound insulation material on the side panel and the front also reduces vibrations and provides even more stability
• The side panel with an innovative double-glazed window and a cavity of 9mm between the panes of the window provides superb sound insulation
• Two pre-installed Pure Wings 2 fans (one Pure Wings 2 140mm in the front, one Pure Wings 2 120mm at the rear) include an array of optimizations for quiet airflow
- unique airflow-optimized fan blade design reduces noise-generating fan turbulence
- high-quality sleeved bearing
- switching, noise-cancelling circuitry
- fans are decoupled from the case with special mounts, reducing transmission of vibration and noise
• Hard drive cage features unique, specially designed silicone rubber anti-vibration rails that fully decouple drives to eliminate any transmission of vibration to the case
Perfect Cooling
• The upper cover air ducts are designed to channel cooling airflow. The rear opening allows air to exit the chassis while reducing the noise passing through the front panel
• Adjustable side panel vent allows the user to fine tune airflow
• Additional fan mounting of up to four fans at the top, bottom and front
• Convenient 3-step fan controller for up to three 3-pin fans
• Water cooling ready for high-performance systems. Three areas are provided for radiators: below the top cover, in the HDD section and in the rear of the case
• Organized cable routing assures a better look, but more importantly it also provides for efficient airflow, better cooling, and therefore quieter operation
Engineering
• The unique, specially designed front panel intake system allows cool air to enter the case while greatly eliminating almost all of the noise that is allowed back out
• The top cover allows hot air to exit the case while greatly reducing the noise experience
• The chassis is fitted with a side panel that offers more internal space, allowing use of high-end hardware and cooler such as the Dark • Rock series
• The U-shaped edges on the side panels reduce vibration and improve case stability
• The side panel vent can be closed for silent operation, open or partially open in different amounts for increased air intake
• The side panel window is made from scratch and impact resisting material and offers superb sound insulation due to the double-glazing of the window
• The drive cage can be re-arranged to fit different hardware setups
• All relevant openings are protected with removable, cleanable filters to keep your system clean of heat-trapping dust
Excellent Usability
• Generous space and flexibility supports all manner of high-end hardware
• Thoughtful design supports professional cable management:
- innovative side panel design provides more space for cable management behind the M/B tray
- silicone rubber grommets on the M/B tray hold cables from shifting
• Motherboard tray is provided with large, convenient cut-outs for CPU cooler back plates that will ensure compatibility with current and future CPU sockets
• Tool-less drive mounting allows drive configuration and reconfiguration in minutes
- tool-less mounting system for 5.25” drives like ODD, fan controllers etc.
- the silicone rubber rails allow fast and secure tool-less 3.5” HDD mounts
- the case can fit three 2.5” SSD
- one mounting bay in the 3.5” HDD cage
- two additional mounting bays behind the M/B tray
• Easy to remove dust filters are user-friendly and easy to clean
Outstanding Service and Support
• 3-years manufacturer's warranty
• Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET: +49 (0) 40-736 76 86 - 98
Full Specification
Product Description
Be Quiet! Silent Base 600 Gaming Case with Window, ATX, No PSU, Tool-less, 2 x Pure Wings 2 Fans, Orange Trim
Form Factor
ATX
Power Supply Wattage
No PSU
Motherboard Support
ATX, Micro ATX
Connectors / Controls
2 x USB 3.0
2 x USB 2.0
HD Audio In/Out
2 x USB 2.0
HD Audio In/Out
Drive Bays
3 x 5.25"
3 x 3.5"
3 x 2.5"
3 x 3.5"
3 x 2.5"
Expansion Slots
7 x Expansion Slots
Cooling System
1 x 14cm Pure Wing 2 Fans
1 x 12cm Pure Wing 2 Fans
Additional 7 Fan Mounting Locations:
1 x Front 14cm
2 x Top 14/12cm
1 x Bottom 14/12cm
1 x Side Panel 12cm
1 x 12cm Pure Wing 2 Fans
Additional 7 Fan Mounting Locations:
1 x Front 14cm
2 x Top 14/12cm
1 x Bottom 14/12cm
1 x Side Panel 12cm
.
Side panel with adjustable vent
Water cooling ready
Water cooling ready
Colour
Black and Orange
Material
Covers: ABS Plastic
Side Panel: 0,7mm Steel
Double-glazed Window: Polycarbonate
Front Panel: ABS Plastic
Stands: ABS Plastic, Rubber
Side Panel: 0,7mm Steel
Double-glazed Window: Polycarbonate
Front Panel: ABS Plastic
Stands: ABS Plastic, Rubber
Compatability
VGA card:
Upper HDD cage installed: 294 mm
Without upper HDD cage: 413 mm
Max CPU cooler length - up to 170 mm
PSU:
Maximum dimensions excl. bottom fan - 290 mm
Maximum dimensions incl. bottom fan - 160 mm
Upper HDD cage installed: 294 mm
Without upper HDD cage: 413 mm
Max CPU cooler length - up to 170 mm
PSU:
Maximum dimensions excl. bottom fan - 290 mm
Maximum dimensions incl. bottom fan - 160 mm
Weight/Dimensions
8.05 kg

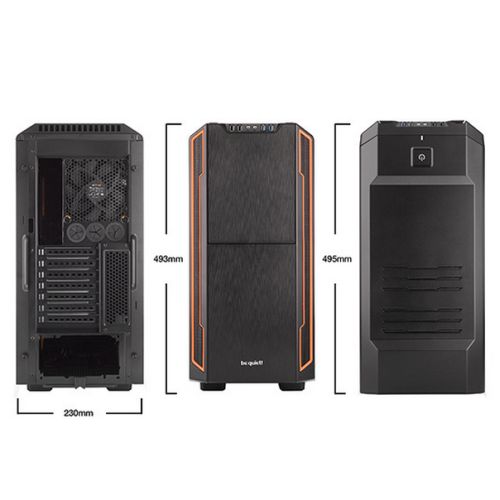

495 x 230 x 493 mm
495 x 230 x 493 mm
Additional Features
See Overview
Package Weight
9.7500 kg
Warranty
3 Years
