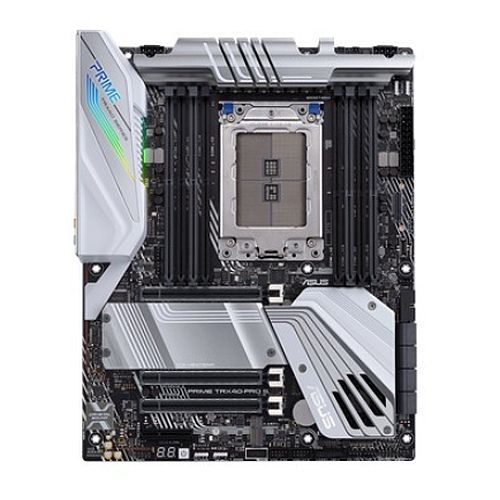

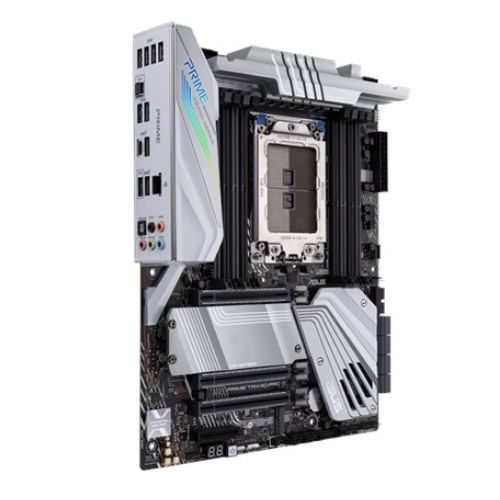

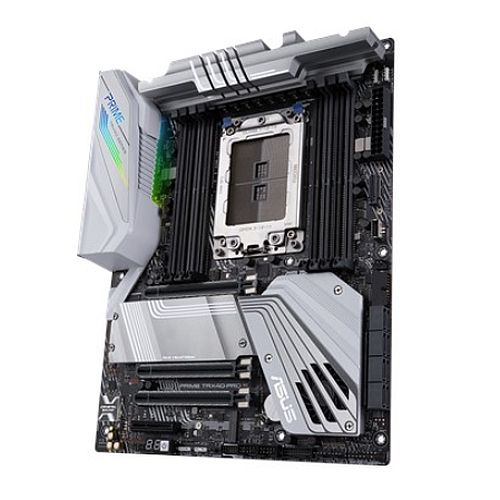

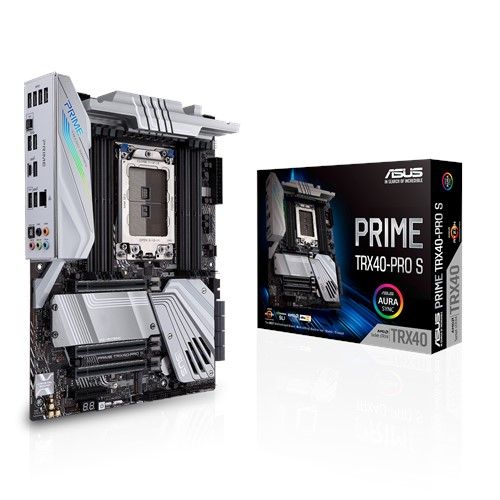

Asus PRIME TRX40-PRO S, AMD TRX40, sTRX40, ATX, 8 DDR4, XFire/SLI, RGB Lighting, M.2, Robust Power, 64 Core CPU Support

Stock Code
AUMBTRX40PROS-PRIME
Manufacturer Link
ASUS
Manufacturer Code
90MB14J0-M0EAY0
EAN Number
4718017660914

Description


AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors (up to 64 cores) with 16 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting

  • AMD Socket sTRX4: Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 cores)
  • Robust power design: 16 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery
  • Comprehensive thermal solutions: VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers
  • Next-gen connectivity: Three PCIe 4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C™ front-panel connector, and Intel Gigabit Ethernet
  • Intelligent tuning: ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels



Full Specification

Product Description
Asus PRIME TRX40-PRO S, AMD TRX40, sTRX40, ATX, 8 DDR4, XFire/SLI, RGB Lighting, M.2, Robust Power, 64 Core CPU Support

Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD sTRX4
Chipset
AMD TRX40
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Quad Channel)
RAM Slots
8 x DIMM
RAM Speeds
4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz
Maximum Memory
256GB
Graphics
-
Graphics Ports
-
Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
PCI Express
3 x PCIe 4.0 x16 (x16/x16/x16)
1 x PCIe 4.0 (x4 mode)
Storage
8 x SATA III
2 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 10
Wireless
-
LAN
GB LAN
Audio
Realtek ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
USB Ports Supported
1 x USB 3.2 Gen 2 Type-C (at back)
7 x USB 3.2 Gen 2 Type-A (at back)
10 x USB 3.2 Gen 1 (6 at back, 4 at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen 2 front panel connector
Back Panel I/O Ports
1 x LAN (RJ45)
4 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
1 x Optical S/PDIF out
5 x Audio jacks
1 x USB BIOS FlashBack Button
Internal I/O Connectors
1 x Q_Code
2 x Aura RGB Strip
2 x Addressable Gen 2
2 x USB 3.2 Gen 1
2 x USB 2.0
3 x M.2 Socket 3 with M key
1 x M.2 with E key for Wi-Fi module
8 x SATA 6Gb/s
1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
.
1 x W_PUMP+
1 x 24-pin EATX
2 x 8-pin ATX 12V
1 x Front audio
1 x System panel
1 x Thermal sensor
1 x Power-on button
1 x Clear CMOS jumper
1 x Node
1 x USB 3.2 Gen 2 front panel connector
Accessories
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cables
2 x M.2 Screw Package
1 x Q-Connector
1 x Ext Cable for RGB strips (40 cm)
1 x Ext cable for Addressable LED
1 x CPU Fan Holder
Additional Features
See Overview
Package Type
Retail
Package Weight
2.3500 kg
Warranty
3 Years
