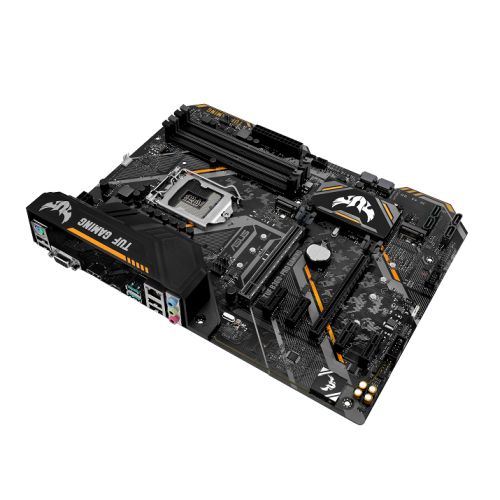

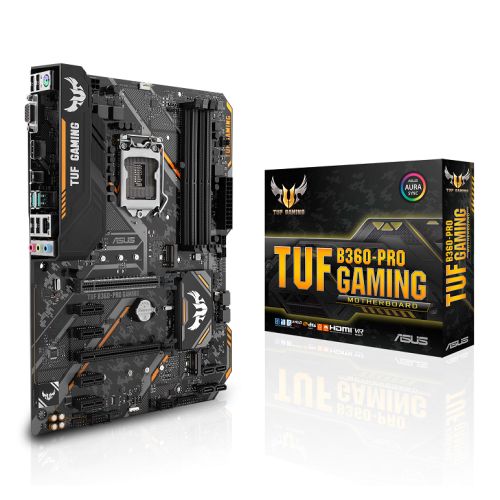

Asus TUF B360-PRO GAMING, Intel B360, 1151, ATX, DDR4, VGA, HDMI, XFire, RGB Lighting, M.2
Stock Code
AUMBB360PROGAMING-TUF
Manufacturer Link
ASUS
Manufacturer Code
90MB0X00-M0EAY0
EAN Number
4712900974713
Description
Intel B360 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 2666MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.
- GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF Gaming Alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger.
TUF Protection
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF Capacitors
+20% temperature tolerance and 5X-longer lifespan.
TUF Mosfets
Certified military-grade MOSFETs with lower RDS(on).
Performance Level Up
GPU Temperature Sensing
System temperatures are key to a stable gaming rig - especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 Core software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
Fan XPERT 4 Core
TUF B360-PRO Gaming features the most comprehensive fan controls ever, configurable via Fan Xpert 4 Core and our award-winning UEFI BIOS.
Asus Optimem
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the TUF Gaming motherboards to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.
Game Your Way
DTS Custum for Gaming Headset
Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets - Aerial, Soundscape, and Tactical - for different genres, you'll have a distinct advantage in every game.
Soundscape Mode
The ideal audio envelope for MMO, RPG, action and horror games - your ears will put you in the center of the action!
Aerial Mode
Shhh - is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!
Outshine the Competition
Aura Sync
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Gaming Networking
More Throughput, Less CPU Usage
TUF B360-PRO Gaming features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Best Surge Protection
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Ultrafast Transfer Speed
Native 10Gbps USB 3.1 GEN 2 Type-A Support
With dual backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps - or twice as fast as USB 3.1 Gen 1.
Speed up with Onboard M.2
With x4 PCI Express® 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.
Intel Optane Memory
Intel® Optane™ is a revolutionary non-volatile memory technology supported by TUF Gaming motherboards. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
Intel CPU and Chipset Features
Intel CPU and Chipset Features
The Intel® B360 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the B360 chipset provides a maximum of four USB 3.1 Gen 2 ports, two USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane-speed support, for faster data retrieval. Intel B360 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for 8th Generation Intel Core LGA1151 Processors
This motherboard supports 8th Generation Intel® Core™ processors in the LGA1151 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Full Specification
Product Description
Asus TUF B360-PRO GAMING, Intel B360, 1151, ATX, DDR4, VGA, HDMI, XFire, RGB Lighting, M.2
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1151 - Coffee Lake
Chipset
Intel B360
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
2666/2400/2133 MHz
Maximum Memory
64GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x VGA
1 x HDMI
1 x HDMI
Multi-GPU Support
Supports AMD 2-Way/Quad-GPU CrossFireX Technology
PCI Express
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max. at x4 mode)
4 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (max. at x4 mode)
4 x PCIe 3.0 x1
PCI
-
Storage
6 x SATA III
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2242/2260/2280/22110) - PCIe
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2242/2260/2280/22110) - PCIe
RAID
-
Wireless
-
LAN
GB LAN
Audio
Realtek ALC887 8-channel high definition audio CODEC
USB Ports Supported
2 x USB 3.1 Gen2 Type-A (at back)
3 x USB 3.1 Gen1 Type-C (at back)
2 x USB 3.1 Gen1 (at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
3 x USB 3.1 Gen1 Type-C (at back)
2 x USB 3.1 Gen1 (at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

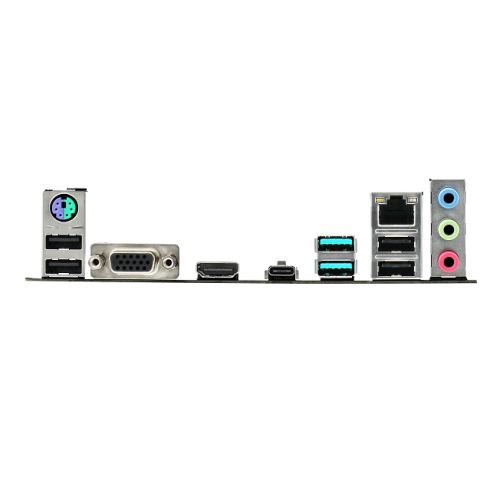

Back Panel I/O Ports
1 x D-sub
1 x HDMI
1 x PS/2 combo
1 x LAN (RJ45)
2 x USB 3.1 Gen2
1 x USB 3.1 Gen1 Type-C
4 x USB 2.0
8-channel Audio I/O ports
1 x HDMI
1 x PS/2 combo
1 x LAN (RJ45)
2 x USB 3.1 Gen2
1 x USB 3.1 Gen1 Type-C
4 x USB 2.0
8-channel Audio I/O ports
Internal I/O Connectors
1 x USB 3.1 Gen1
1 x USB 2.0
2 x M.2 Socket 3
6 x SATA 6.0Gb/s
1 x CPU Fan
1 x AIO_Pump
2 x Chassis Fan
1 x Front audio
1 x 24-pin EATX
1 x 8-pin EATX 12V
1 x System Panel
1 x COM port
1 x USB 2.0
2 x M.2 Socket 3
6 x SATA 6.0Gb/s
1 x CPU Fan
1 x AIO_Pump
2 x Chassis Fan
1 x Front audio
1 x 24-pin EATX
1 x 8-pin EATX 12V
1 x System Panel
1 x COM port
.
1 x RGB
1 x Clear CMOS
1 x Clear CMOS
Accessories
2 x SATA cables
IO Shield
M.2 Screws
CPU Installation Tool
Support DVD
Users manual
TUF Certification card
TUF GAMING sticker
IO Shield
M.2 Screws
CPU Installation Tool
Support DVD
Users manual
TUF Certification card
TUF GAMING sticker
Additional Features
See Overview
Package Type
Retail
Package Weight
1.9000 kg
Warranty
3 Years
