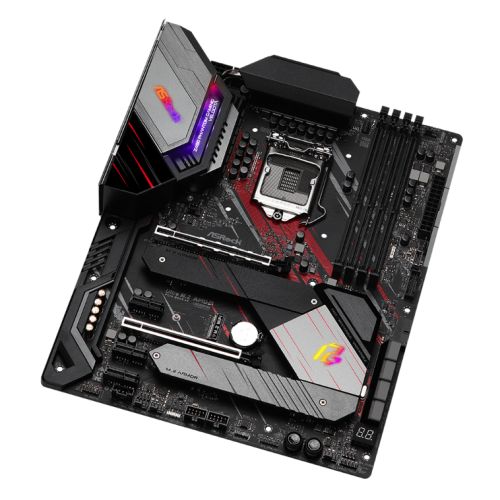

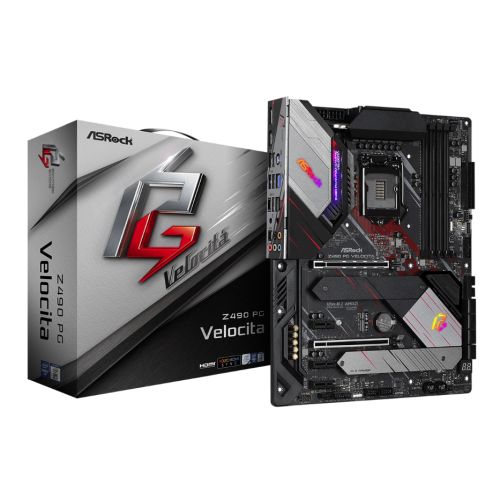

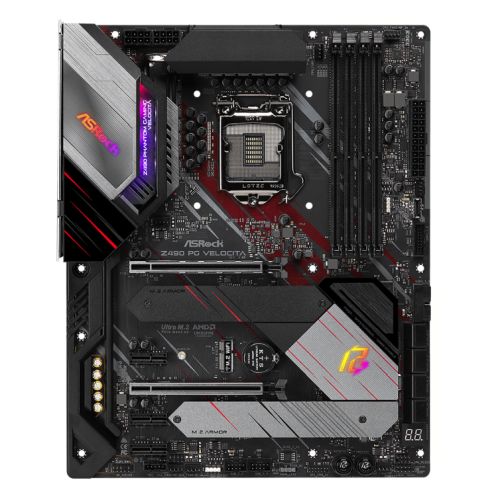

Asrock Z490 PG VELOCITA, Intel Z490, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB Lighting, M.2

Stock Code
ASMBZ490PGVELOCITA
Manufacturer Link
ASROCK
Manufacturer Code
Z490 PG VELOCITA
EAN Number
4710483931123

Description


Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

  • Supports 10th Gen and future generation Intel® Core™ Processors (Socket 1200)
  • 13 Phase Dr.MOS Power Design
  • Supports DDR4 4666MHz+ (OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
  • 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 9 USB 3.2 Gen1 (4 Front, 4 Rear, Front Type-C)
  • Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
  • ASRock Polychrome SYNC




PCI Express 4.0 Hardware Ready!

Welcome to the PCI Express 4.0 new era and be a smart buyer with ASRock motherboards! Z490 enthusiast level motherboards equipped with luxury components that allows geeks to be hardware ready for PCI Express 4.0 standard !

PCIE 4.0 Clock Generator
An additional external base clock generator that delivers PCI Express 4.0 standard.

PCIE 4.0 Steel Slot
Equipped with reinforced steel slot which is based on PCI Express 4.0 hardware requirement.

PCIE 4.0 M.2 Socket
Hyper M.2 Key M socket, wth PCI Express 4.0 hardware for x4 high speed SSDs.





Optimized for Water Cooling

XXL Aluminum Alloy Heatsink with Active FAN Design
XXL Aluminum Alloy Heatsink design with active fan that effectively improve heat dissipation and promotes overall performance. This is aimed for die hard gamers and enthusiasts to bring a new computing experience paired with Intel's 10-core processors.




0dB Silent Cooling
Realize the completely silent computing by automatically adjusts fan speed and even command it stop working when the temperature goes low.





Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.





Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.





Premium 60A Power Choke

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Heat Dissipating PCB Technology

Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees!





2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!





Rule your own Lighting Way - Polychrome RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.





Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.





A Solid M.2-Solution Perfomer

Dual M.2 For SSD
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.

M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.





Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.





Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.





Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.





Gold Audio Jacks

Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!





Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.



Full Specification

Product Description
Asrock Z490 PG VELOCITA, Intel Z490, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB Lighting, M.2

Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1200
Chipset
Intel Z490
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Maximum Memory
128GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x HDMI
1 x DisplayPort
Multi-GPU Support
Supports AMD Quad CrossFireX
PCI Express
2 x PCI Express 3.0 x16
3 x PCI Express 3.0 x1
Storage
8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2230/2242/2260/2280/22110) - PCIe
RAID
RAID 0, 1, 5, 10
Wireless
-
LAN
2.5GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported
2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen1 Type-C front panel connector

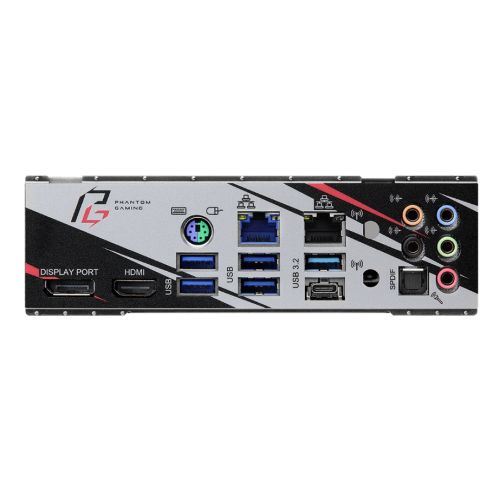

Back Panel I/O Ports
2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
2 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
2 x USB 2.0
.
2 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen1
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
Accessories
4 x SATA Data Cables
3 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
Additional Features
See Overview
Package Type
Retail
Package Weight
2.3000 kg
Warranty
3 Year Replacement Warranty
