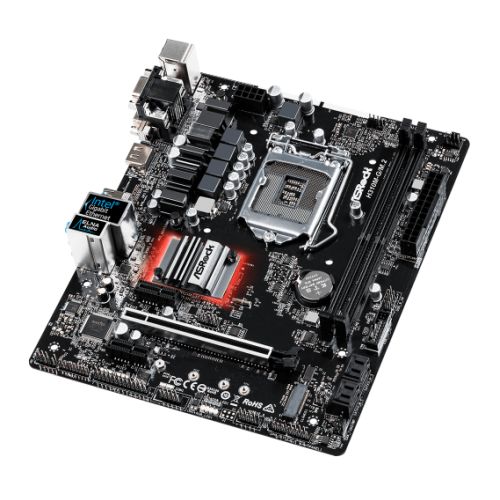

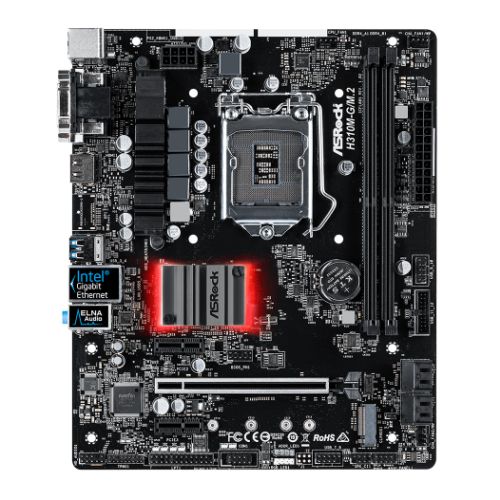

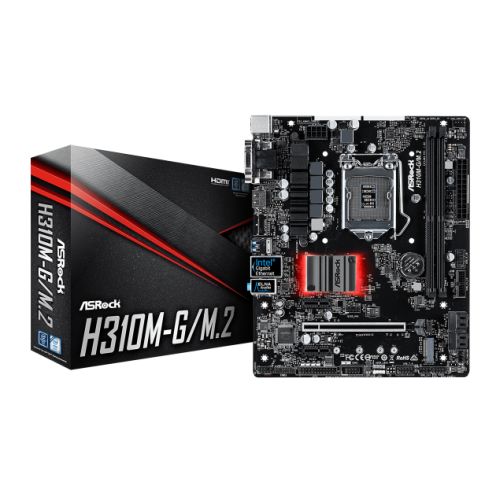

Asrock H310M-G/M.2, Intel H310, 1151, Micro ATX, DDR4, XFire, VGA, DVI, HDMI, M.2, RGB Lighting
Stock Code
ASMBH310MGM2
Manufacturer Link
ASROCK
Manufacturer Code
H310M-G/M.2
EAN Number
4717677335255
Description
- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- Supports DDR4 2666
- 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
Rule Your Own Lighting Way - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
PCIe Gen2 x4 M.2
The PCIe Gen2 x4 interface pushes data transfer speeds up to 20Gb/s. In addition, it also supports SATA 3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some U.2 SSDs.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
PCI-e Steel Slots
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Super Alloy Motherboard
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Full Specification
Product Description
Asrock H310M-G/M.2, Intel H310, 1151, Micro ATX, DDR4, XFire, VGA, DVI, HDMI, M.2, RGB Lighting
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1151 - Coffee Lake
Chipset
Intel H310
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
2666 / 2400 / 2133 MHz
Maximum Memory
32GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x VGA
1 x DVI-D
1 x HDMI
1 x DVI-D
1 x HDMI
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX Technology
PCI Express
1 x PCIe 3.0 x16 (PCIE1: x16 mode)
2 x PCIe 2.0 x1
2 x PCIe 2.0 x1
PCI
-
Storage
4 x SATA III
1 x M.2 Socket (2230/2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2230/2242/2260/2280) - SATA & PCIe
RAID
-
Wireless
-
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
USB Ports Supported
4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)

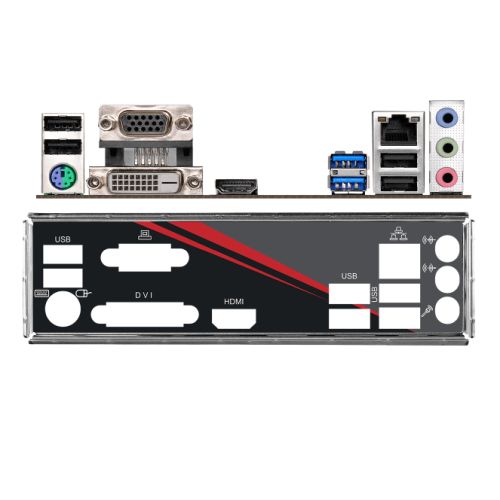

Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
4 x USB 2.0
2 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio Jacks
1 x D-Sub
1 x DVI-D
1 x HDMI
4 x USB 2.0
2 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x Print Port
1 x COM Port
1 x TPM
1 x Chassis Intrusion and Speaker
1 x RGB LED
1 x Addressable LED
1 x CPU Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
2 x USB 2.0
1 x COM Port
1 x TPM
1 x Chassis Intrusion and Speaker
1 x RGB LED
1 x Addressable LED
1 x CPU Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
2 x USB 2.0
.
1 x USB 3.1 Gen1
Accessories
Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Support CD
I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Additional Features
See Overview
Package Type
Retail
Package Weight
0.7700 kg
Warranty
3 Year Replacement Warranty
